Quick Guide
KrigR
and I highly recommend you peruse the rest of the content, too.
Pre-KrigR
Housekeeping
Before we can commence the quick start guide, I want to set up a directory structure and prepare some plotting functions to make the rest of the guide run more smoothly.
Setting up Directories
For this guide to run in a structured way, we create a folder/directory structure. We create the following directories:
- A Data directory for all of our data downloads
- A Covariate directory for all of our covariate data
- An Exports directory for all of our Kriging outputs
Dir.Base <- getwd() # identifying the current directory
Dir.Data <- file.path(Dir.Base, "Data") # folder path for data
Dir.Covariates <- file.path(Dir.Base, "Covariates") # folder path for covariates
Dir.Exports <- file.path(Dir.Base, "Exports") # folder path for exports
## create directories, if they don't exist yet
Dirs <- sapply(
c(Dir.Data, Dir.Covariates, Dir.Exports),
function(x) if (!dir.exists(x)) dir.create(x)
)
Visualiation Functions
In order to easily visualise our Kriging procedure including (1) inputs, (2) covariates, and (3) outputs without repeating too much of the same code, I have prepared some plotting functions which you can download as FUN_Plotting.R.
With the FUN_Plotting.R
file placed in the project directory of your workshop material (i.e., the directory returned by Dir.Base
), running the following will register the three plotting functions in your R
environment.
source("FUN_Plotting.R")
The plotting functions you have just loaded are called:
Plot_Raw()
- we will use this function to visualise data downloaded withKrigR
Plot_Covs()
- this function will help us visualise the covariates we use for statistical interpolationPlot_Krigs()
- kriged products and their associated uncertainty will be visualised using this function
Don’t worry about understanding how these functions work off the bat here. Kriging and the package KrigR
are what we want to demonstrate here - not visualisation strategies.
Using KrigR
Before we start these exercises, we need to load KrigR
:
library(KrigR)
KrigR
can be used in one of two ways.

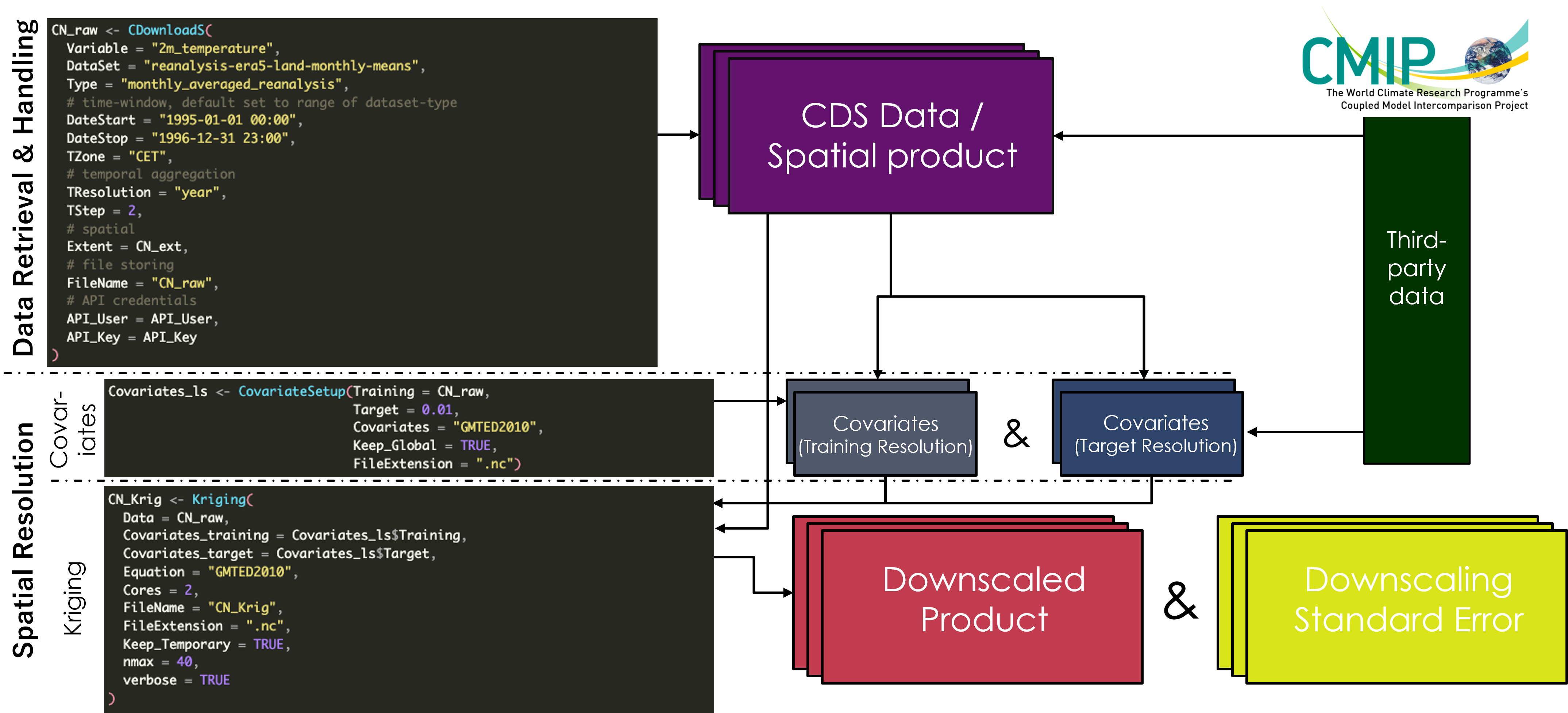

The Three Steps
Using KrigR
in this way, you use the three core functions download_ERA()
, download_DEM()
, and krigR()
.
KrigR
workflow.
The most simple way in which you can run the functions of the KrigR
package is by specifying a rectangular bounding box (i.e., an extent
) to specify your study region(s).
Here, we will run a small downscaling exercise for the region I was born and grew up in. For a more detailed discussion of this region, please refer to this section:
Here’s the full area for which we will be obtaining and downscaling data for:
Extent_ext <- extent(c(9.87, 15.03, 49.89, 53.06))
Extent_ext
## class : Extent
## xmin : 9.87
## xmax : 15.03
## ymin : 49.89
## ymax : 53.06
Climate Data
For this part of the tutorial, we download air temperature for a three-day interval around my birthday (03-01-1995) using the extent highlighted above.
Click here for file if download takes too long:
Download QS_Raw.nc and place it into your data directory.QS_Raw <- download_ERA(
Variable = "2m_temperature",
DataSet = "era5-land",
DateStart = "1995-01-02",
DateStop = "1995-01-04",
TResolution = "day",
TStep = 1,
Extent = Extent_ext,
Dir = Dir.Data,
FileName = "QS_Raw",
API_User = API_User,
API_Key = API_Key
)
Plot_Raw(QS_Raw, Dates = c("02-01-1995", "03-01-1995", "04-01-1995"))
Now, let’s look at the raster that was produced:
QS_Raw
## class : RasterStack
## dimensions : 34, 54, 1836, 3 (nrow, ncol, ncell, nlayers)
## resolution : 0.09999999, 0.09999998 (x, y)
## extent : 9.72, 15.12, 49.74, 53.14 (xmin, xmax, ymin, ymax)
## crs : +proj=longlat +datum=WGS84 +no_defs
## names : X1, X2, X3
As you can see, we obtained a RasterStack object with 3 layers of data (one for each day we are interested in). Notice that extent of our downloaded data set does not fit the extent we set earlier manually. This is a precaution we have taken within KrigR
to make sure that all data cells you are interested in are covered.
KrigR
widens the spatial extent that is specified to ensure full coverage of the respective ERA5(-Land) raster cells. Global downloads are not affected by this and work just as you’d expect.
download_ERA()
function and ensure you receive the data you require can be found here.
Keep in mind that every function within the KrigR
package produces NetCDF (.nc) files in the specified directory (Dir
argument in the function call) to allow for further manipulation outside of R
if necessary (for example, using Panoply).
Covariates
Next, we use the download_DEM()
function which comes with KrigR
to obtain elevation data as our covariate of choice. This produces two rasters:
- A raster of training resolution which matches the input data in all attributes except for the data in each cell.
- A raster of target resolution which matches the input data as closely as possible in all attributes except for the resolution (which is specified by the user).
Both of these products are bundled into a list
where the first element corresponds to the training resolution and the second element contains the target resolution covariate data. Here, we specify a target resolution of .02
.
Covs_ls <- download_DEM(
Train_ras = QS_Raw,
Target_res = .02,
Dir = Dir.Covariates,
Keep_Temporary = TRUE
)

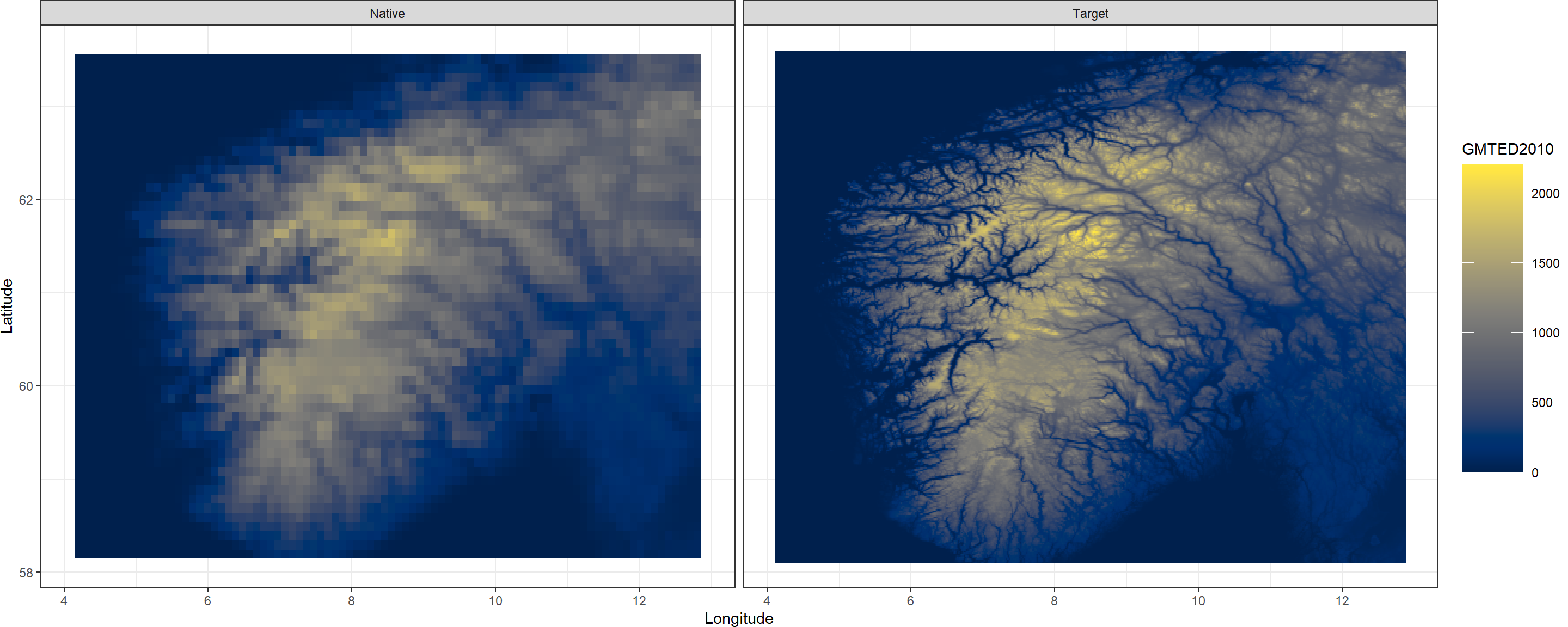

Plot_Covs(Covs_ls)
For now, let’s simply inspect our list of covariate rasters:
Covs_ls
## [[1]]
## class : RasterLayer
## dimensions : 34, 54, 1836 (nrow, ncol, ncell)
## resolution : 0.09999999, 0.09999998 (x, y)
## extent : 9.72, 15.12, 49.74, 53.14 (xmin, xmax, ymin, ymax)
## crs : +proj=longlat +datum=WGS84 +no_defs
## source : memory
## names : DEM
## values : 3.156112, 847.6525 (min, max)
##
##
## [[2]]
## class : RasterLayer
## dimensions : 204, 324, 66096 (nrow, ncol, ncell)
## resolution : 0.01666667, 0.01666667 (x, y)
## extent : 9.716527, 15.11653, 49.74153, 53.14153 (xmin, xmax, ymin, ymax)
## crs : +proj=longlat +datum=WGS84 +no_defs
## source : memory
## names : DEM
## values : -1.5, 1111.75 (min, max)
Kriging
Now let’s statistically downscale these data:
QS_Krig <- krigR(
Data = QS_Raw, # data we want to krig as a raster object
Covariates_coarse = Covs_ls[[1]], # training covariate as a raster object
Covariates_fine = Covs_ls[[2]], # target covariate as a raster object
Keep_Temporary = FALSE, # we don't want to retain the individually kriged layers on our hard-drive
nmax = 40, # degree of localisation
Cores = 3, # we want to krig using three cores to speed this process up
FileName = "QS_Krig.nc", # the file name for our full kriging output
Dir = Dir.Exports # which directory to save our final input in
)

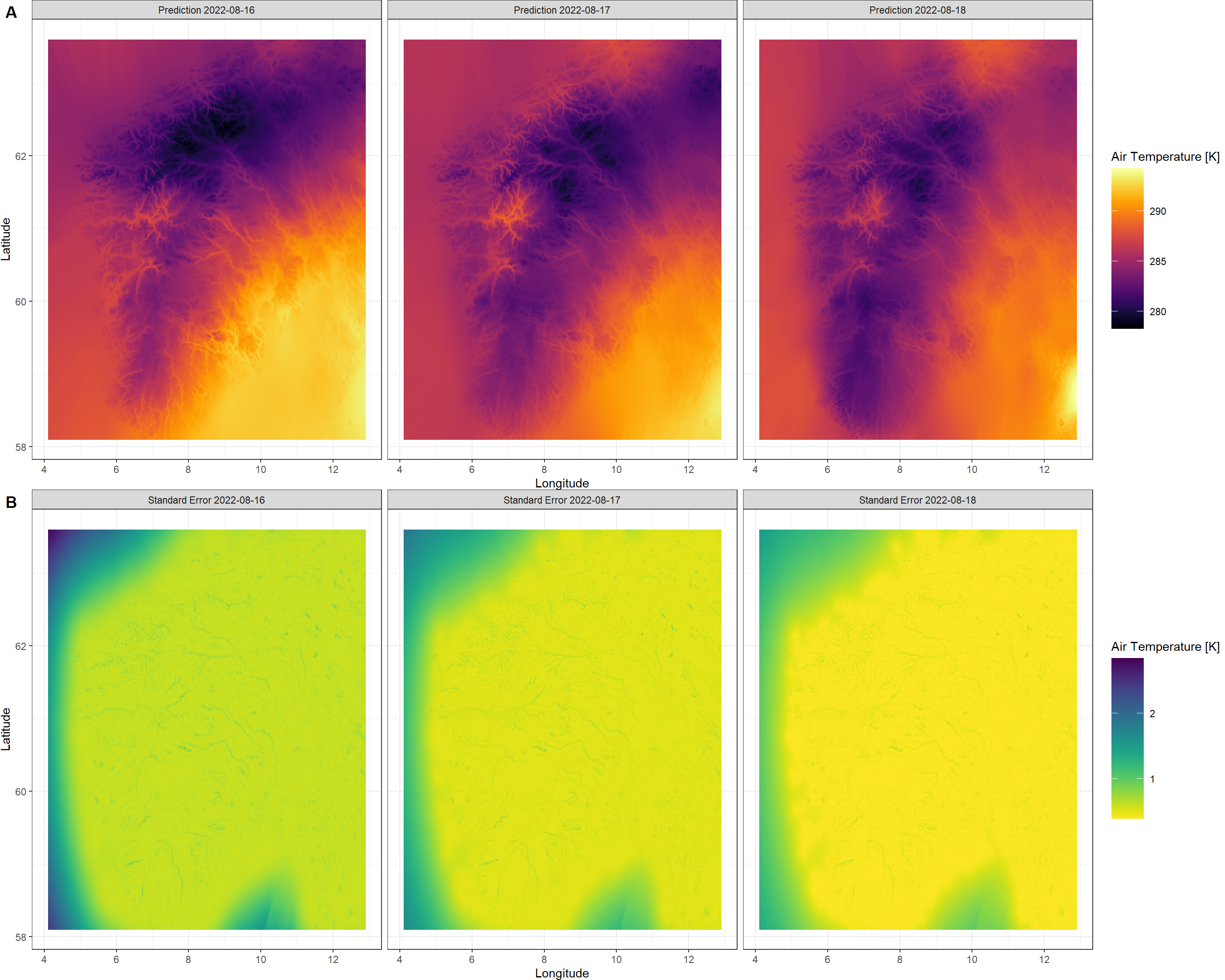

Plot_Krigs(QS_Krig, Dates = c("02-01-1995", "03-01-1995", "04-01-1995"))
This operation took 32 seconds on my machine (this may vary drastically on other devices).
There we go. All the data has been downscaled and we do have uncertainties recorded for all of our outputs. As you can see, the elevation patterns show up clearly in our kriged air temperature output. Furthermore, you can see that our certainty of Kriging predictions drops on the 04/01/1995 in comparison to the two preceding days. However, do keep in mind that a maximum standard error of 0.22, 0.251, 0.445 (for each layer of our output respectively) on a total range of data of 6.281, 6.511, 8.388 (again, for each layer in the output respectively) is evident of a downscaling result we can be confident in.
Now, what does the output actually look like?
QS_Krig[-3] # we will talk later about why we leave out the third list element produced by krigR here
## $Kriging_Output
## class : RasterBrick
## dimensions : 204, 324, 66096, 3 (nrow, ncol, ncell, nlayers)
## resolution : 0.01666667, 0.01666667 (x, y)
## extent : 9.716527, 15.11653, 49.74153, 53.14153 (xmin, xmax, ymin, ymax)
## crs : +proj=longlat +datum=WGS84 +no_defs
## source : memory
## names : X0001_data, X0002_data, X0003_data
## min values : 266.9992, 266.0957, 261.7828
## max values : 273.2800, 272.6068, 270.1708
##
##
## $Kriging_SE
## class : RasterBrick
## dimensions : 204, 324, 66096, 3 (nrow, ncol, ncell, nlayers)
## resolution : 0.01666667, 0.01666667 (x, y)
## extent : 9.716527, 15.11653, 49.74153, 53.14153 (xmin, xmax, ymin, ymax)
## crs : +proj=longlat +datum=WGS84 +no_defs
## source : memory
## names : X0001_SE, X0002_SE, X0003_SE
## min values : 0.11882790, 0.05715606, 0.08283082
## max values : 0.2200428, 0.2507924, 0.4449649
As output of the krigR()
function, we obtain a list of downscaled data as the first element and downscaling standard errors as the second list element.
krigR()
function can be found here.
The Pipeline
Now that we’ve seen how you can execute the KrigR
workflow using three separate functions, it is time that we show you the most simplified function call to obtain some downscaled products: the pipeline.
KrigR
through the pipeline approach limits you to the default covariate data and takes away control from you. Use this only if you know exactly what you are doing.
We have coded the krigR()
function in such a way that it can either be addressed at already present spatial products within your R
environment, or handle all the downloading and resampling of input data and covariates for you from scratch. To run the exact same Kriging approach as within our extent-example, we can specify the krigR()
function as such:
Pipe_Krig <- krigR(
Variable = "2m_temperature",
DataSet = "era5-land",
DateStart = "1995-01-02",
DateStop = "1995-01-04",
TResolution = "day",
TStep = 1,
Extent = Extent_ext,
API_User = API_User,
API_Key = API_Key,
Target_res = .02,
Source = "Drive",
nmax = 40,
Cores = 3,
FileName = "QS_Pipe.nc",
Dir = Dir.Exports
)
Plot_Krigs(Pipe_Krig, Dates = c("02-01-1995", "03-01-1995", "04-01-1995"))
Let’s just check how this compares to non-pipeline product:
all.equal(QS_Krig[[1]], Pipe_Krig[[1]])
## [1] TRUE
Surprise! There is no difference.
KrigR
. For more effective use of the KrigR
toolbox, I suggest you peruse the rest of the workshop material or use the search function if you have specific queries.
For a use-case of the pipeline see this part of our workshop.
